Stork Talk

Thanks for coming to my talk!

I work at Stripe, in San Francisco doing client-side engineering. I'm a recovering college newspaper designer & web developer; I was on the staff of the college newspaper doing graphic design, but ultimately I ended up rebuilding their website. As a general rule, I'm pretty obsessed with the web as a document & application platform.

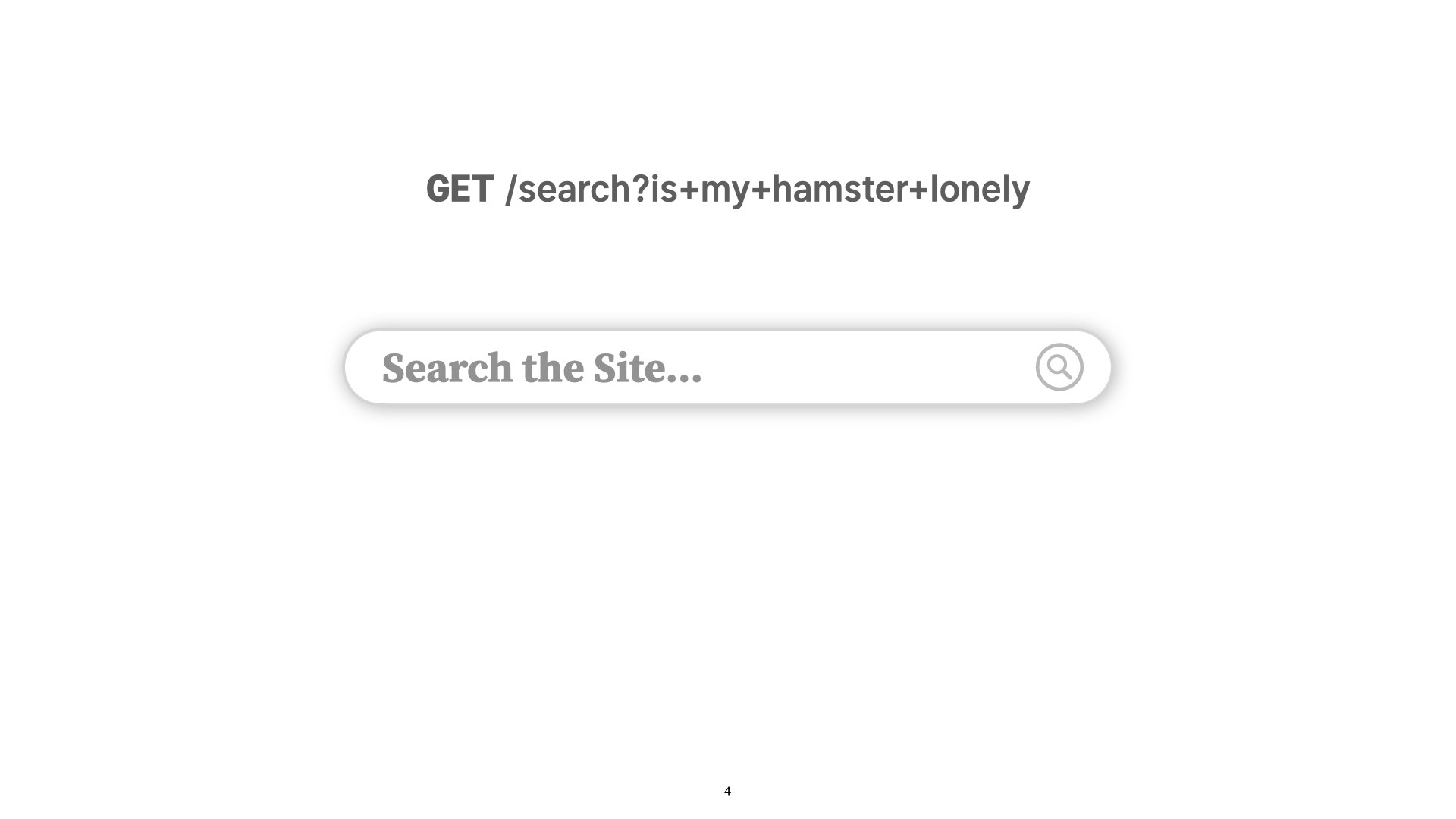

When I was on the staff of the college newspaper, I spent a lot of time in this room putting together its website. For a few weeks, I ended up thinking a lot about the site's search box.

Search is an essential feature: It was the only way our editors found articles about things that happened in the past. I spent a lot of time trying to figure out something that worked: Algolia, Wordpress search, or something else. I ended up realizing that search is only a solved problem if you’re willing to run a server (or have someone else run a server for you) and host a search API over HTTP. But running servers is hard. Maintenance is difficult, esp. for a group of college students interested in journalism. It's another service whose downtime we have to worry about. And farming search off to a third party service is a tough sell: it's expensive, and there's still a lot of configuration that we'd have to do. Ultimately we stuck a Google Custom search box on the page and shipped it, despite the weird UI. Why? Two reasons: first, there's no configuration or manual upload-your-articles process - Google indexed everything. Second, it's easy to understand: it's an iframe that lives in the frontend.

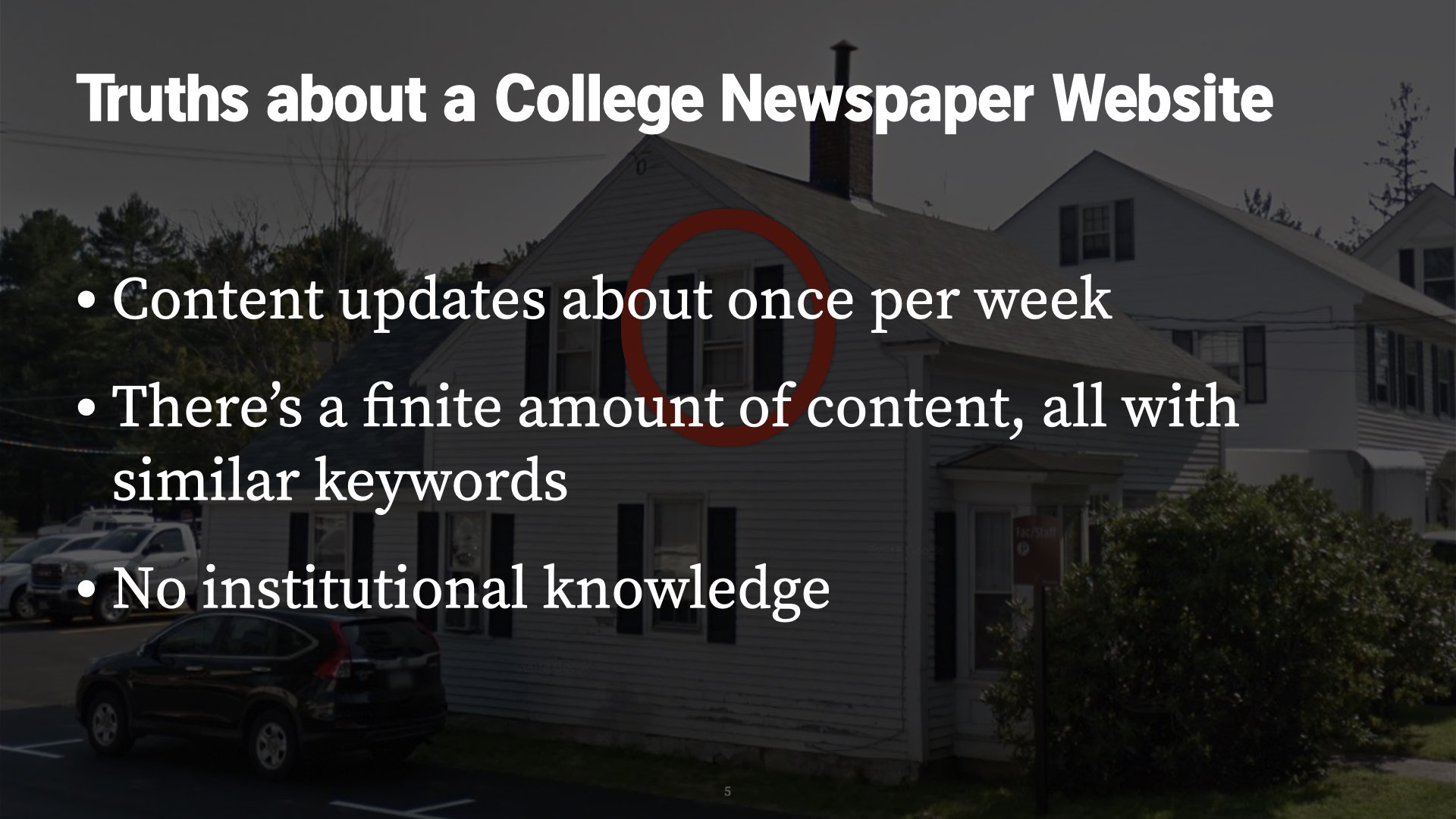

I came up with some realizations when I was sitting in that room trying to build a search bar for our website:

• Content updates about once per week
• There’s a finite amount of content, all with similar keywords
• No institutional knowledge
• There are lots of sites that fit this description - are they struggling with search too?

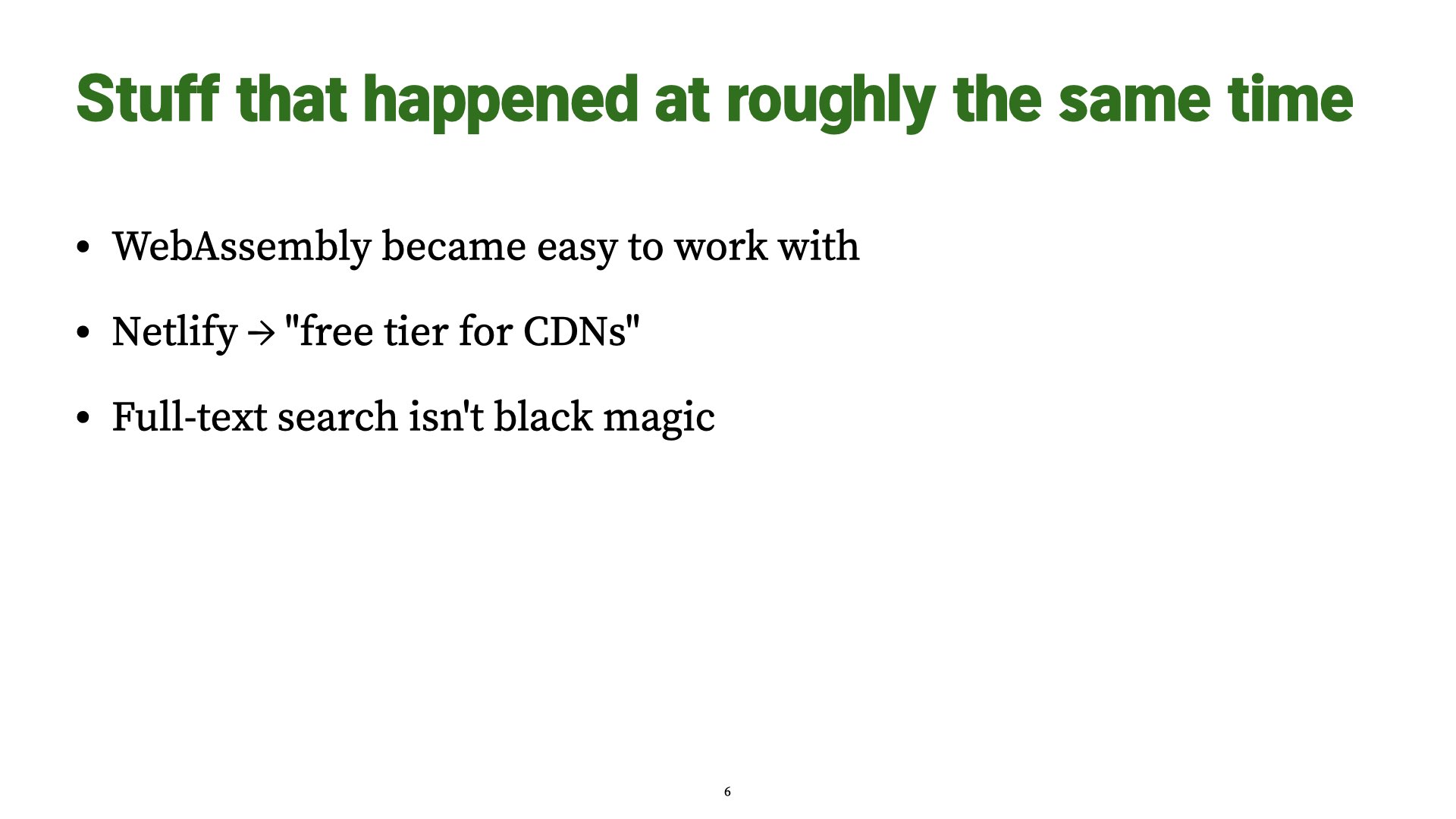

At the same time I was thinking about search for that website, a few things happened. First, WebAssembly became an easier compilation target, so everyone started talking about it. Next, Netlify grew in popularity, making a “free tier for CDNs” available to the world. Finally, I listened to a podcast episode about how someone else implemented full-text search and realized it wasn’t impossible.

So I had a big idea: I can generate a search index out of band, then load it onto a webpage like an image, then use WebAssembly to run the search. And of course, like all big ideas, I had this one in the shower.

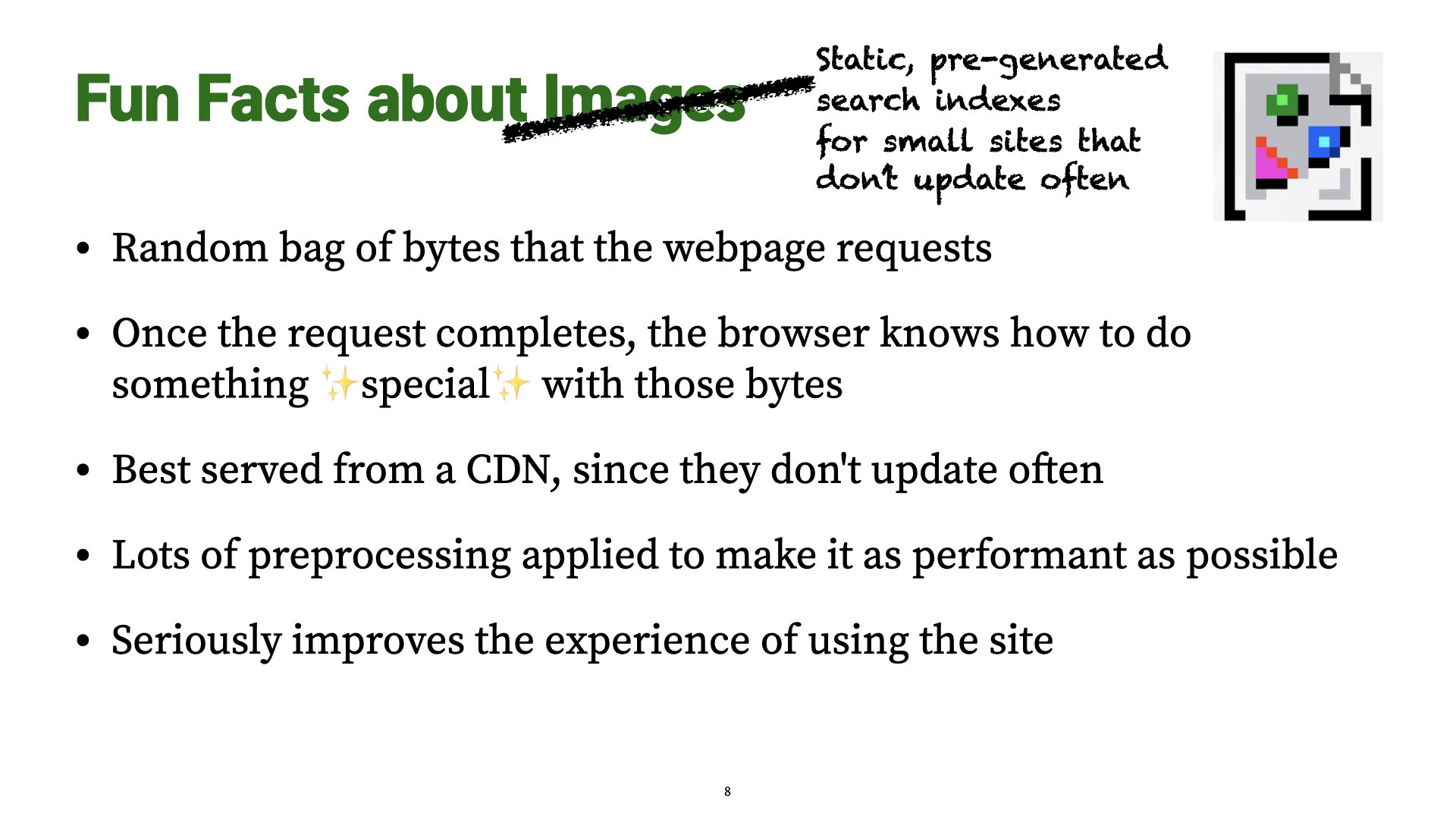

What does it mean to "load a search index onto a page like an image?" There are some similarities between images and the search index files that Stork generates, and a search web plugin can be successful if it treats these similarities as principles. (There was a fun feigned surprise here, but it doesn't translate well over text).

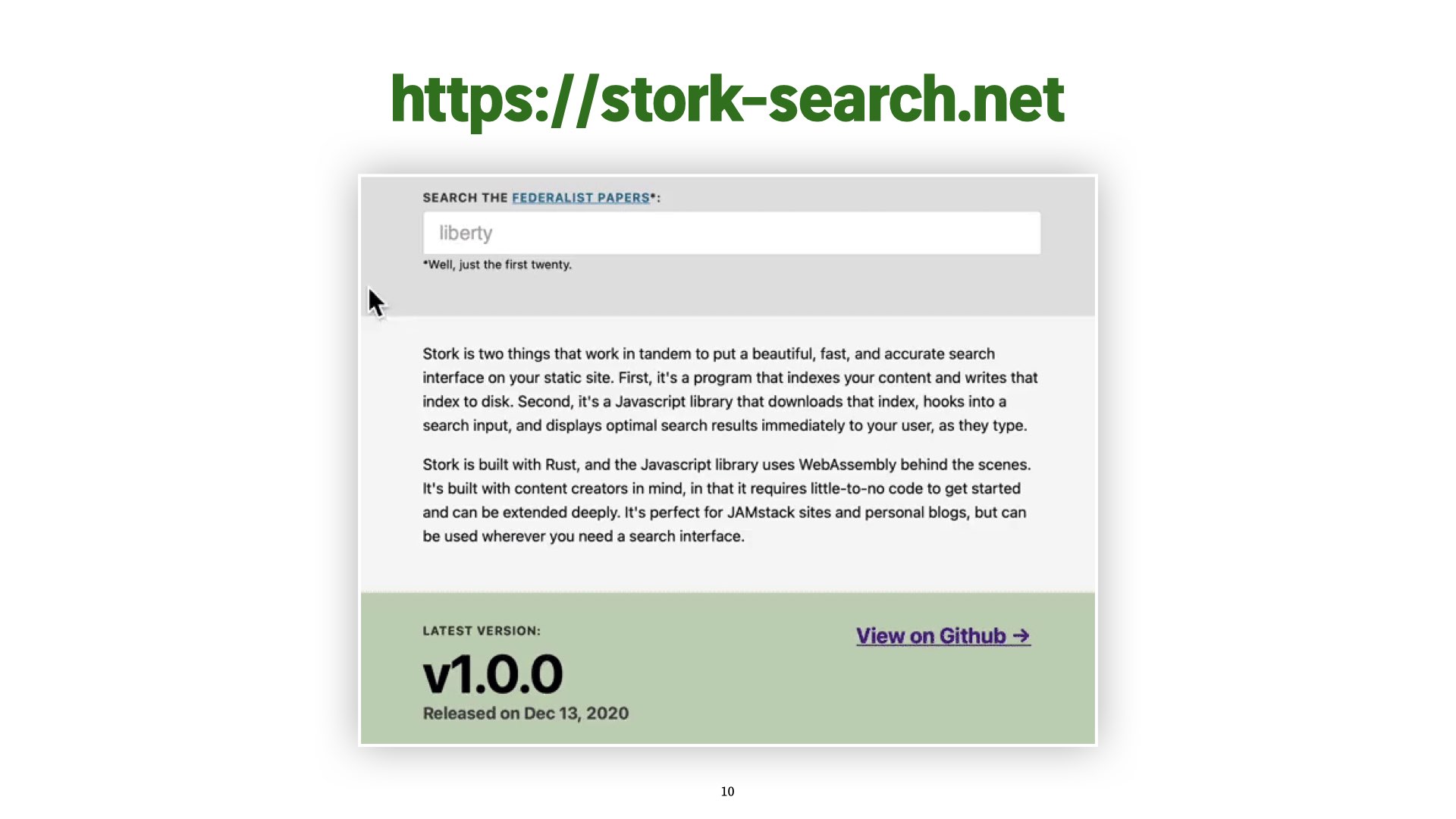

I've built Stork Search. It's the open source search product I wish had existed when I started out.

The cool thing about building it myself is that I can run the project the way I think it should be run. I publish the project roadmap on the website, so people can quickly determine if it's useful for them or not. I inject humanity into the documentation. I can develop it at the pace and quality level I think would bring most value to the world, and often I spend more time to make it better than other people might.

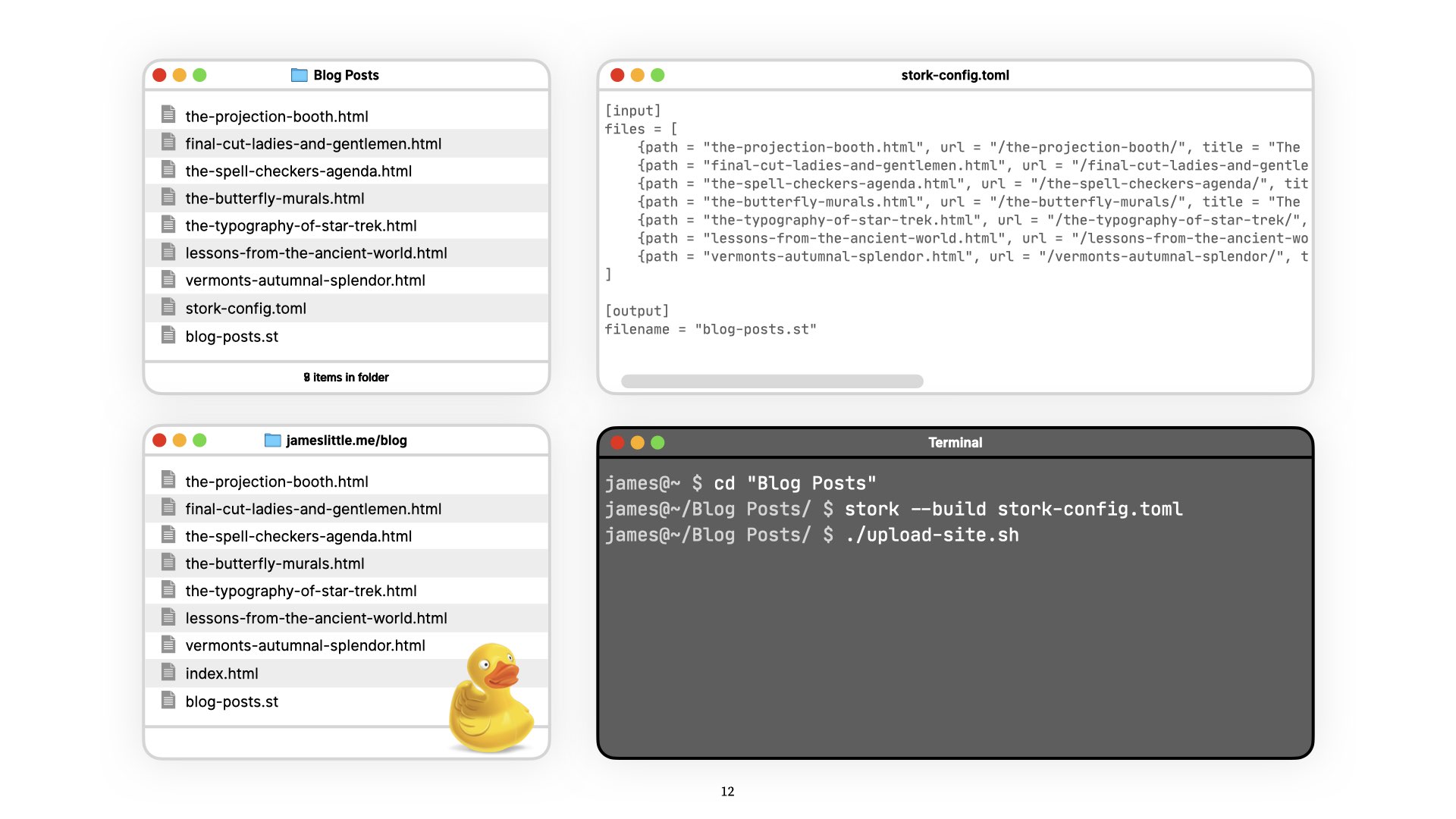

This is an interactive slide that showed how you build a configuration file and generate a search index from a folder of blog posts.

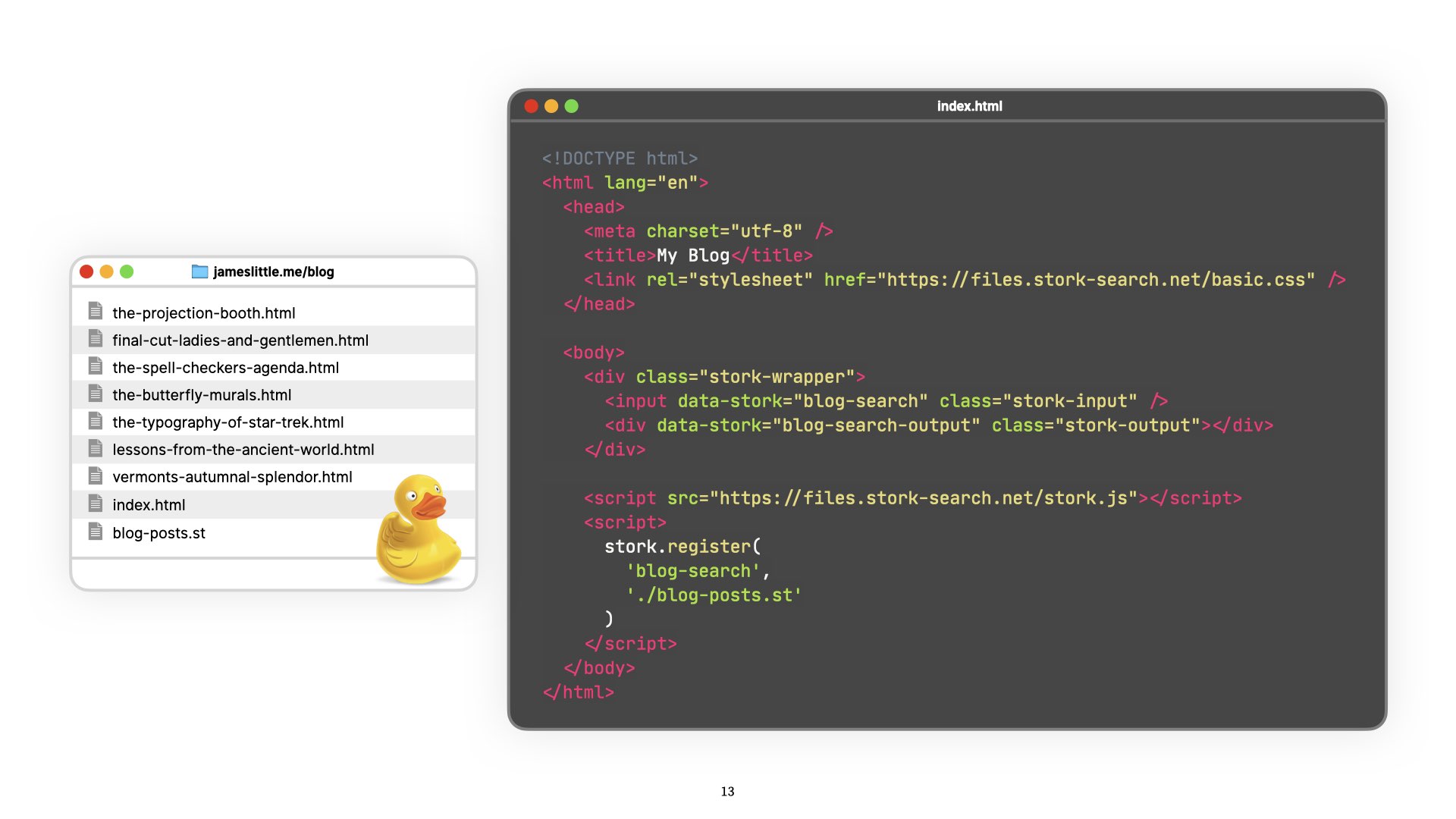

This is part two of the interactive slide, which shows how you can FTP that configuration file to your web server and make a little webpage with a search interface for those blog posts.

And there's a demo of that webpage! I played with it live during the talk, but now you can play with it yourself: https://codepen.io/pen/MWbxagZ

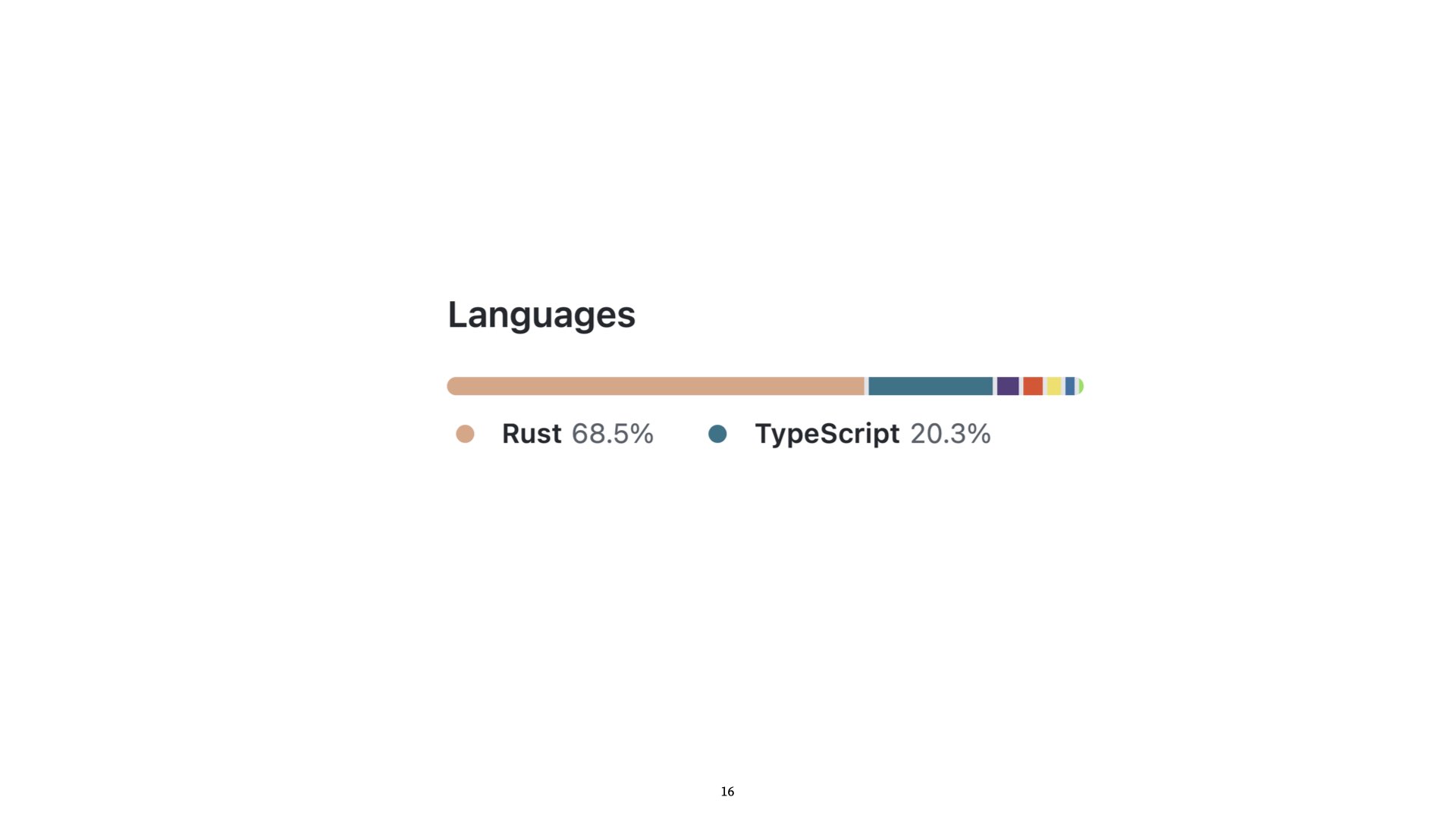

The core is in Rust. The Rust program compiles to both a binary and a WASM blob—I actually chose Rust because at the time, Rust and Go were the two languages that could easily compile to WASM and I was more eager to learn Rust and join the Rust community.

In addition to the Rust code, there's a smallish Javascript shim code layer that web developers actually interact with. It that handles loading the WASM, loading the index, and attaching to the "dumb" DOM elements to make them interactive.

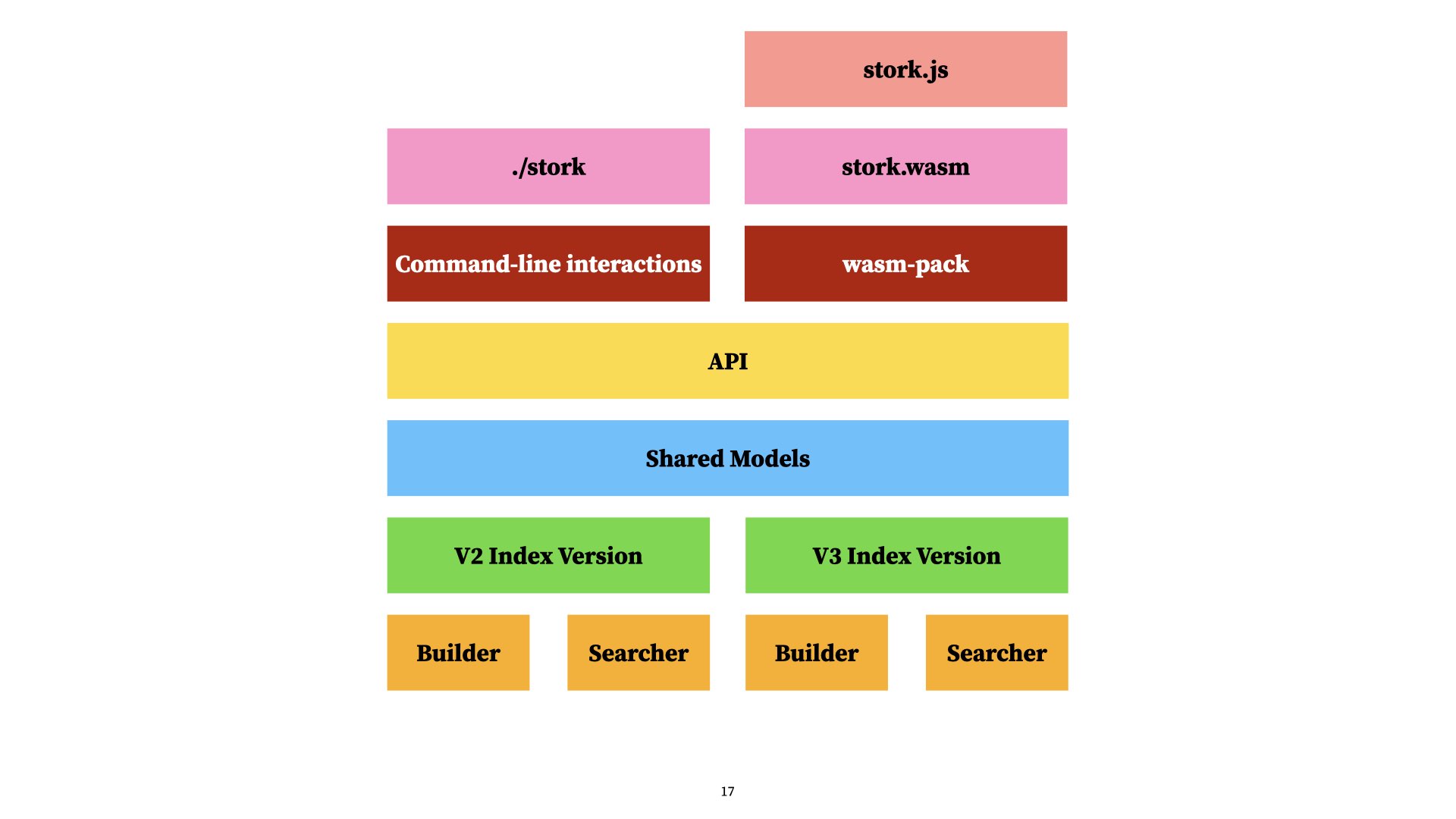

Here's a rough diagram that defines the architecture of the codebase. There's a core API, which interacts with queries and returns search results. This core API is all modeled via shared models that never change. The index itself is a big serialized data structure, and Stork supports different index versions for backwards compatibility. Finally, there are two APIs on top of the core models: the WASM and the command line tool. Two different compilation targets for the same codebase.

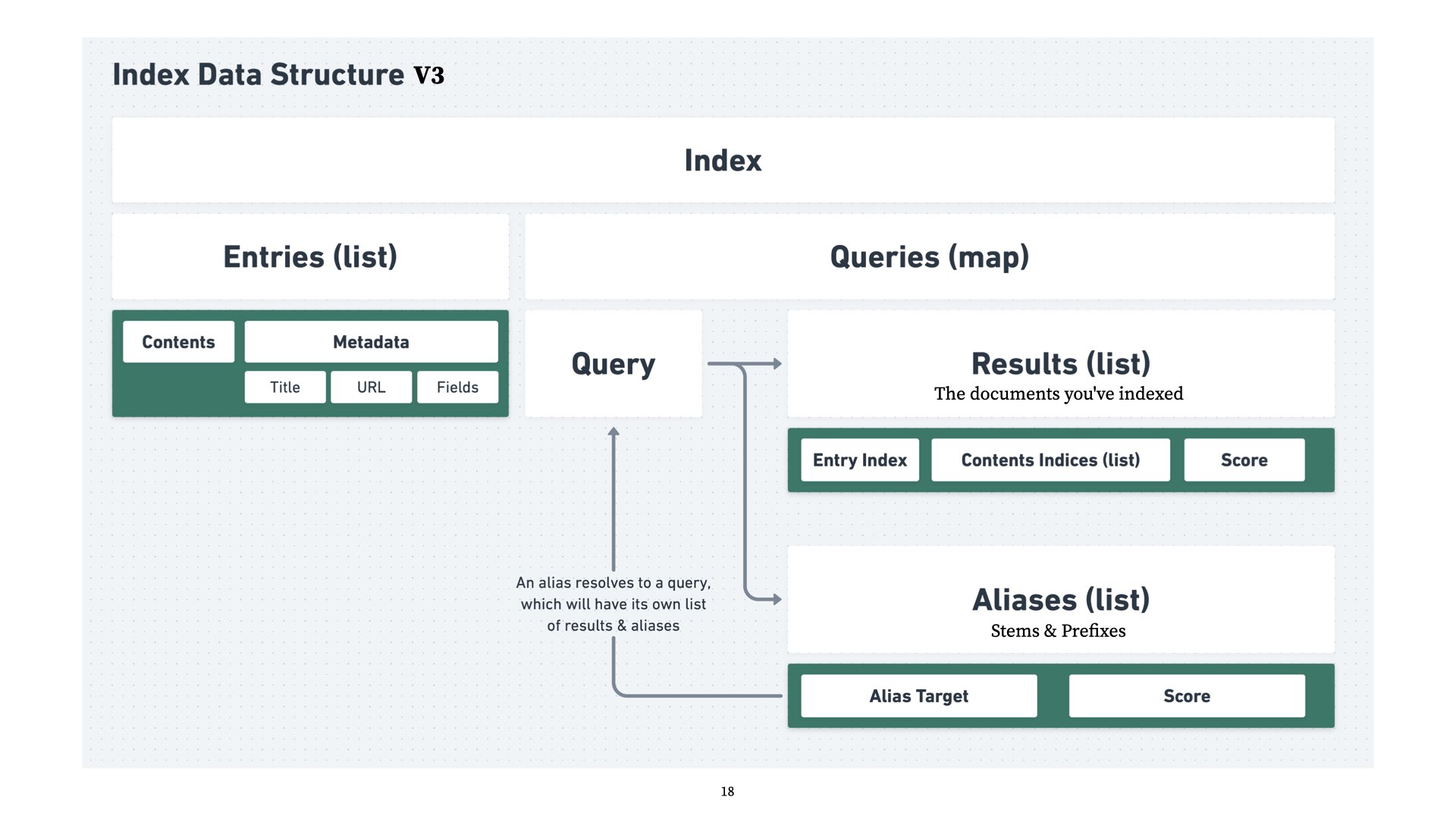

This is a diagram that shows the search index's data structure. The index stores "entries" and "queries", where entries are the full text of the documents that get indexed. Queries are a reverse hash map of all the extracted words in all of those documents, pointing to the entry and word index where that word appears. The queries map also contains aliases, which are used to redirect the search algorithm to a set of words that exist in the corpus. The search algorithm does a lot of deduplication when taking results from the hash map and building up the search results.

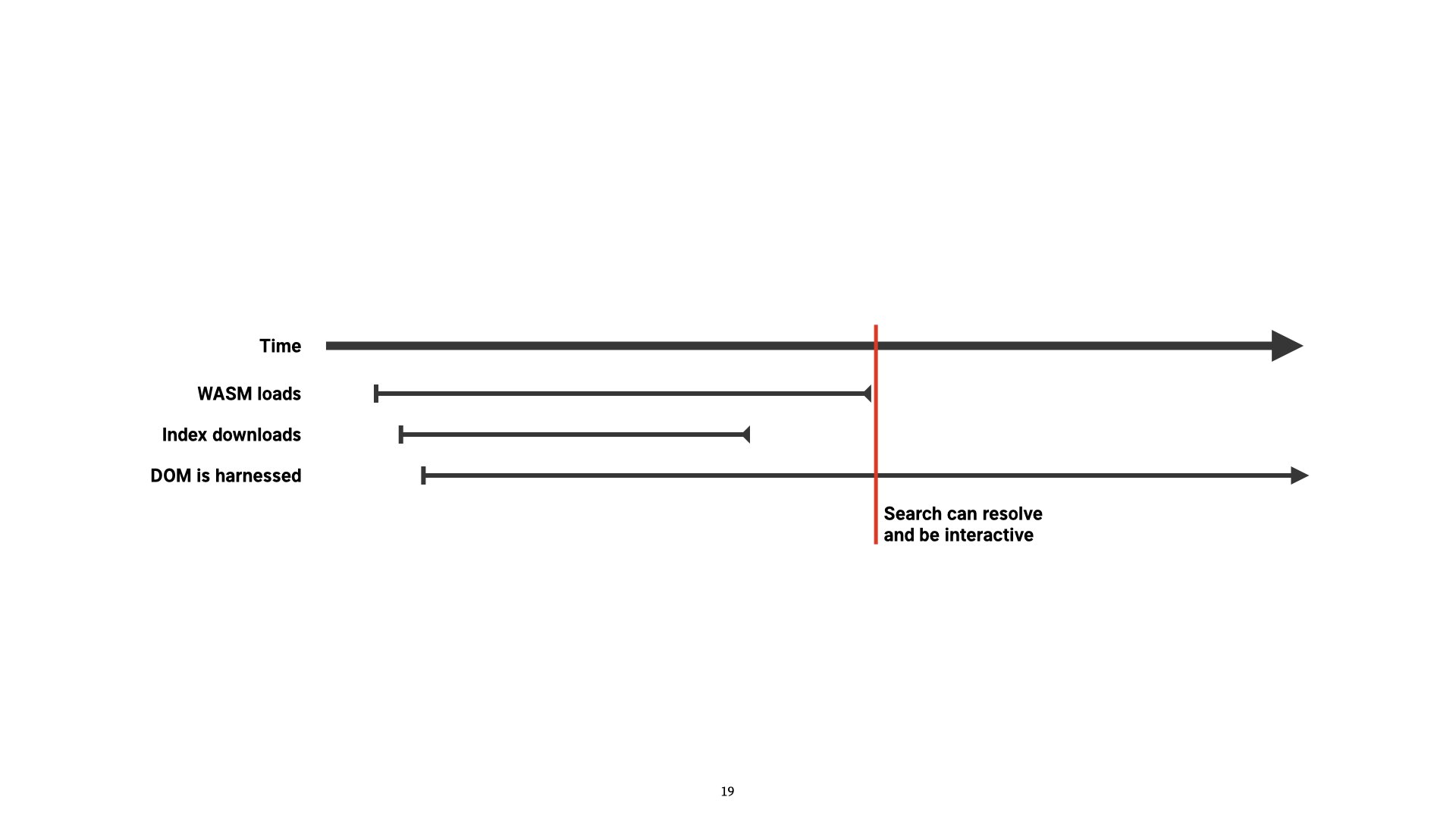

The Javascript library seems trivial, but the complexity lies in the three things it's doing, all of which are asynchronous. First, it's loading the WASM blob. Second, it's loading the index file. Third, it's waiting for the DOM to be available and taking over the specified DOM elements. When the WASM is loaded and the index file is fetched, Stork can begin resolving search queries, but the DOM has to be responsive before that, and has to display failures properly.

What's next?

I see Stork as a Lifetime Project, where progress doesn't have to be fast. That gives me the time to think through product directions and technical design, with the expectation that Stork will be something I continuously improve over a long time. That said, I do have some goals for the project. Stork should be the "obvious choice" for search if you're building a static-ish site, which mostly means I want to reduce as much friction as I can when someone is setting it up or deploying it. It can also be a strong contender in other situations, like one search index per SaaS user. Finally, I want to skate to where the puck is going: use new web technologies, new design, etc. Stork should always feel a little futuristic, almost like it's pushing a boundary.

Thanks! You can check out Stork at https://stork-search.net.
